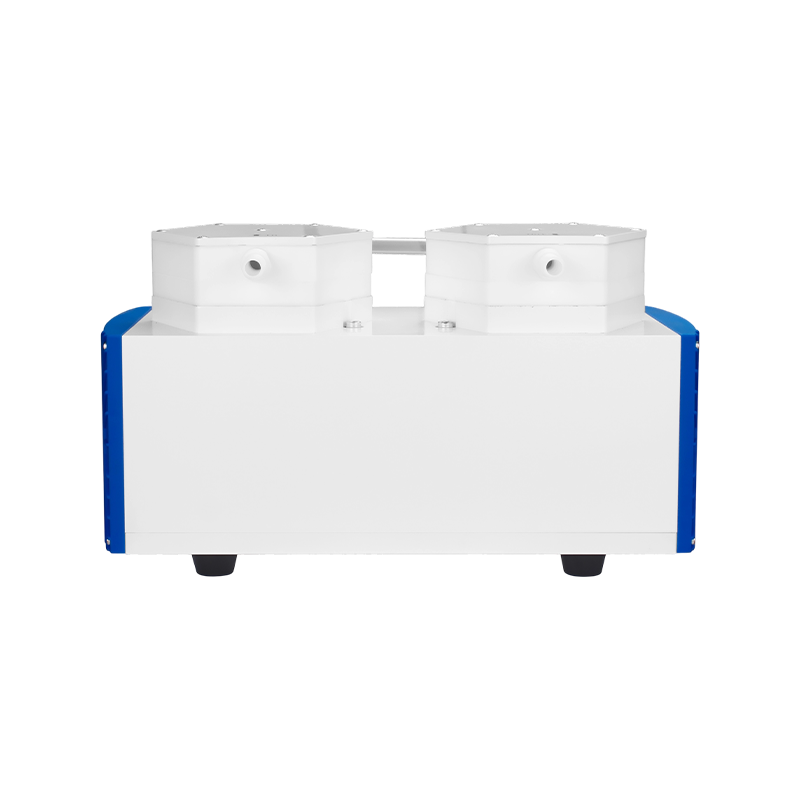

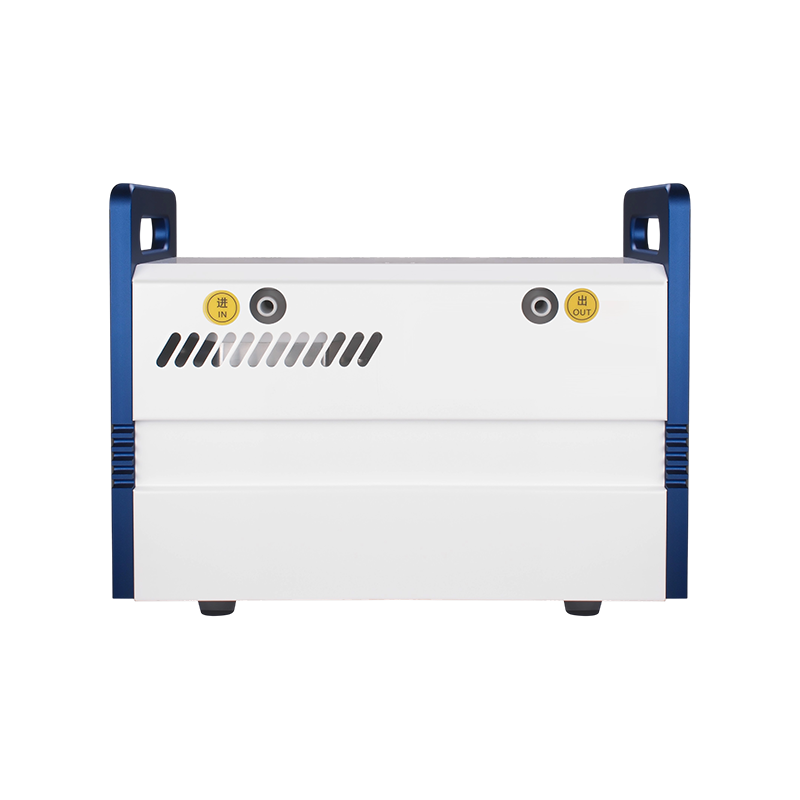

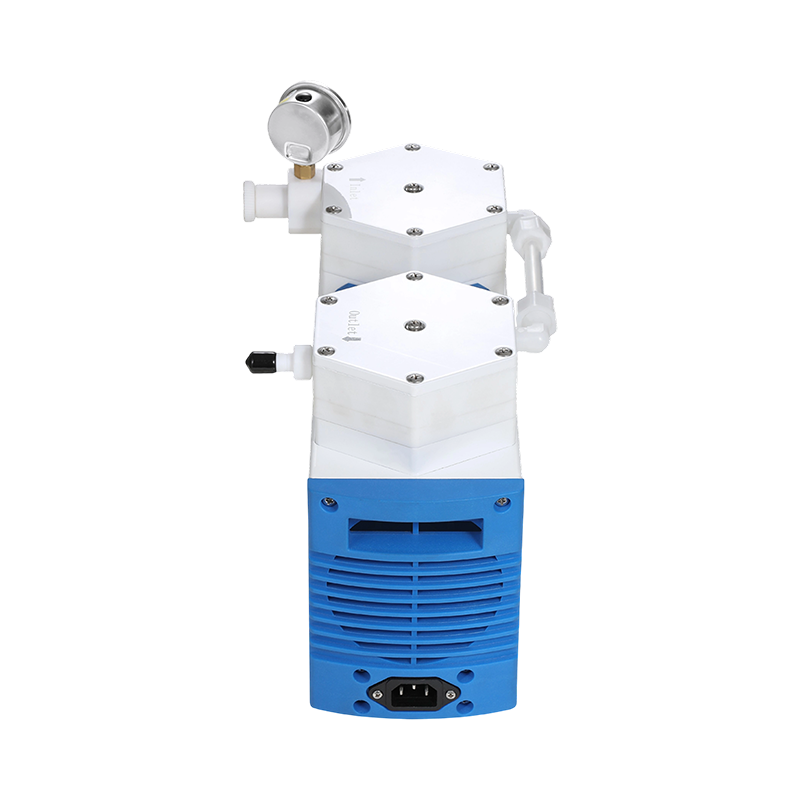

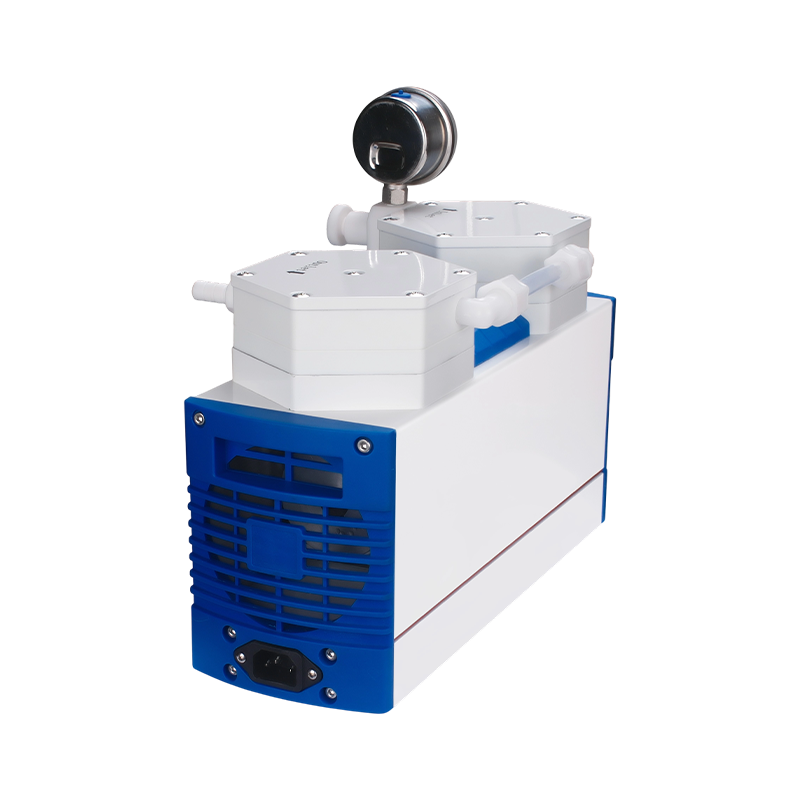

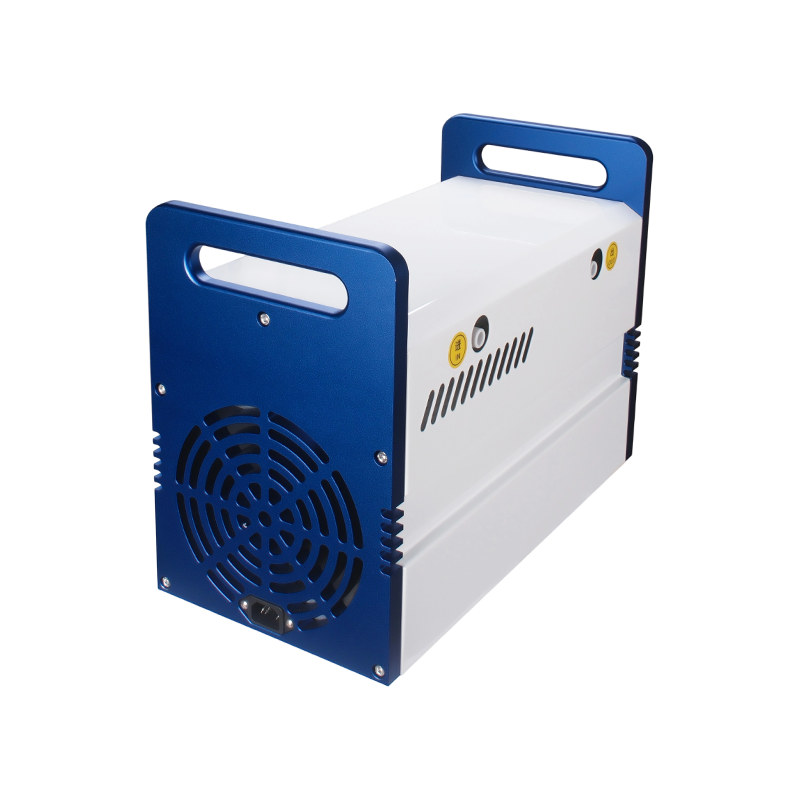

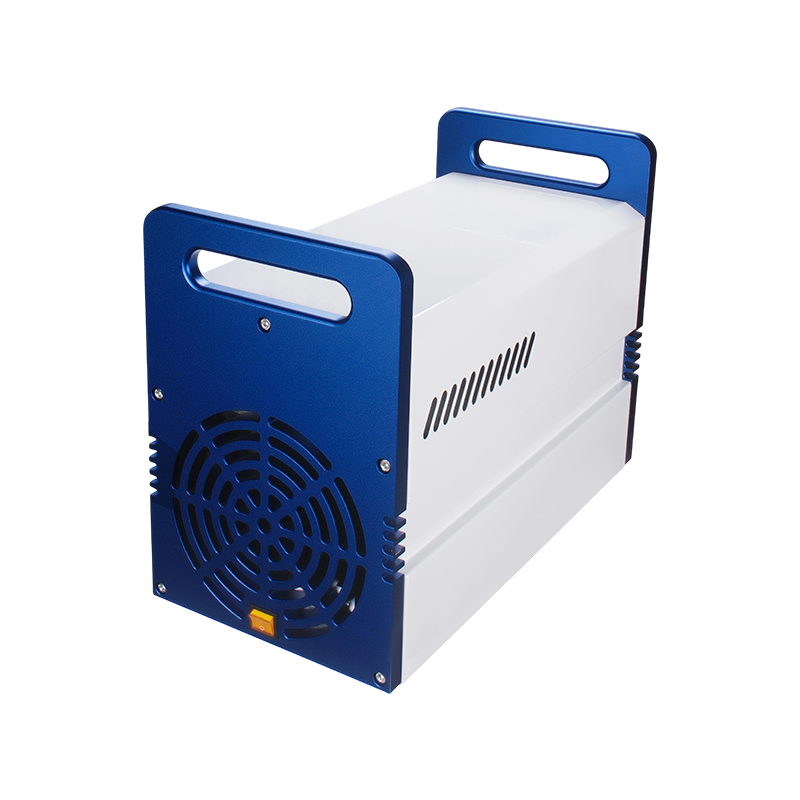

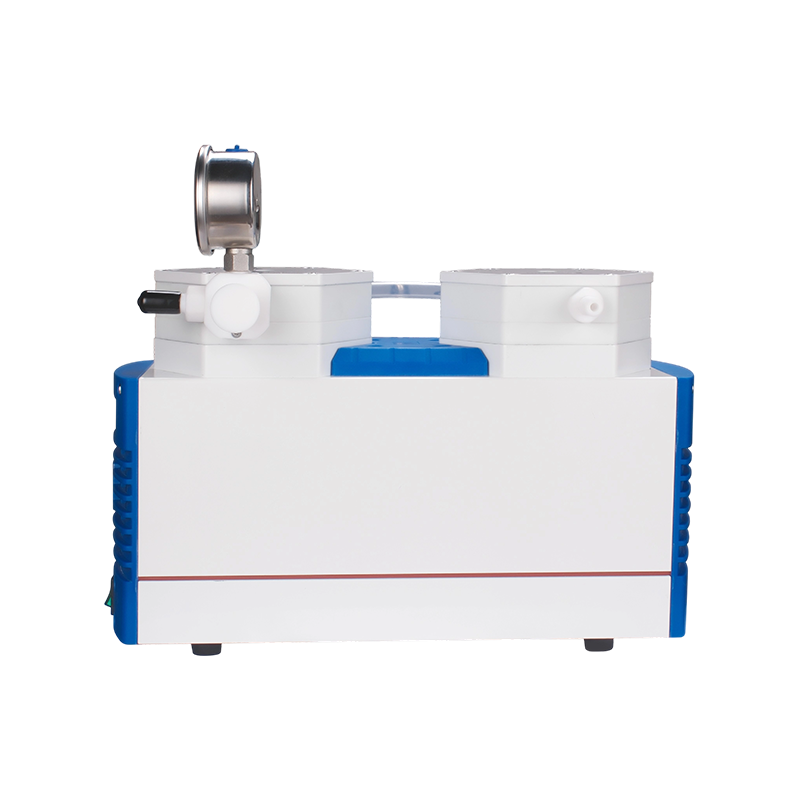

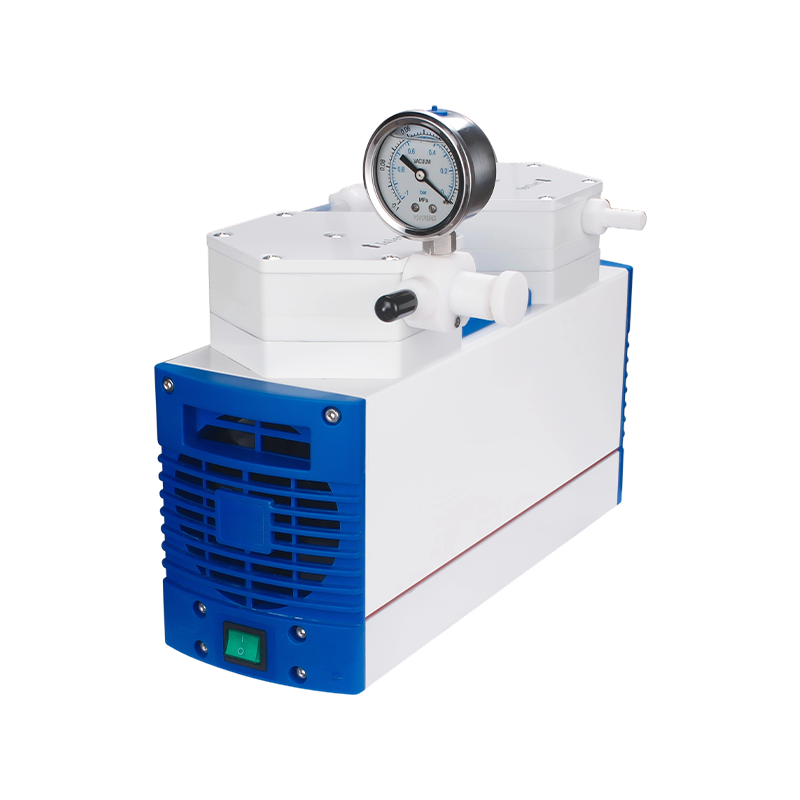

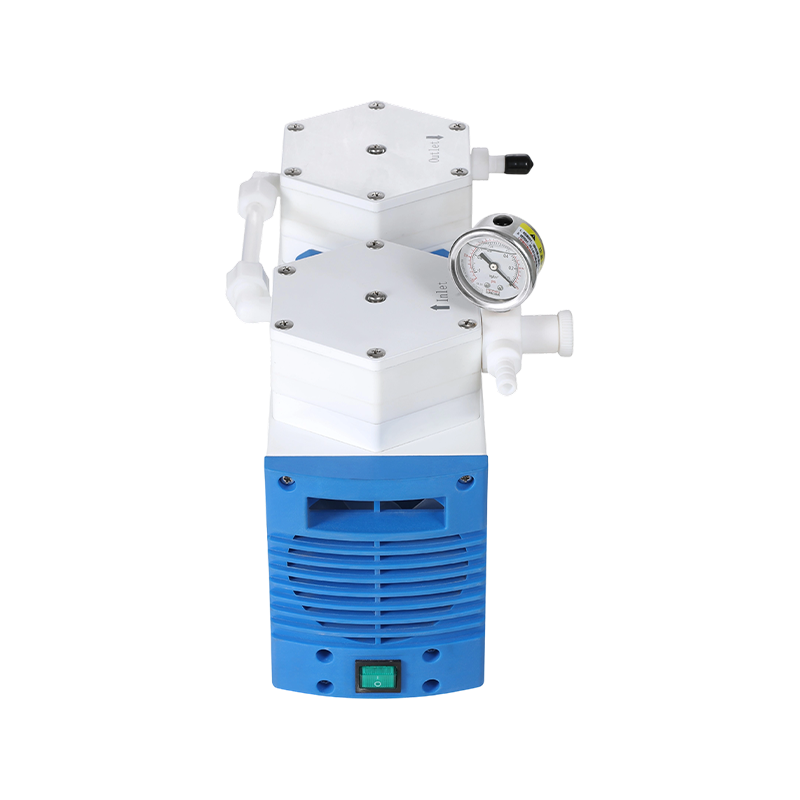

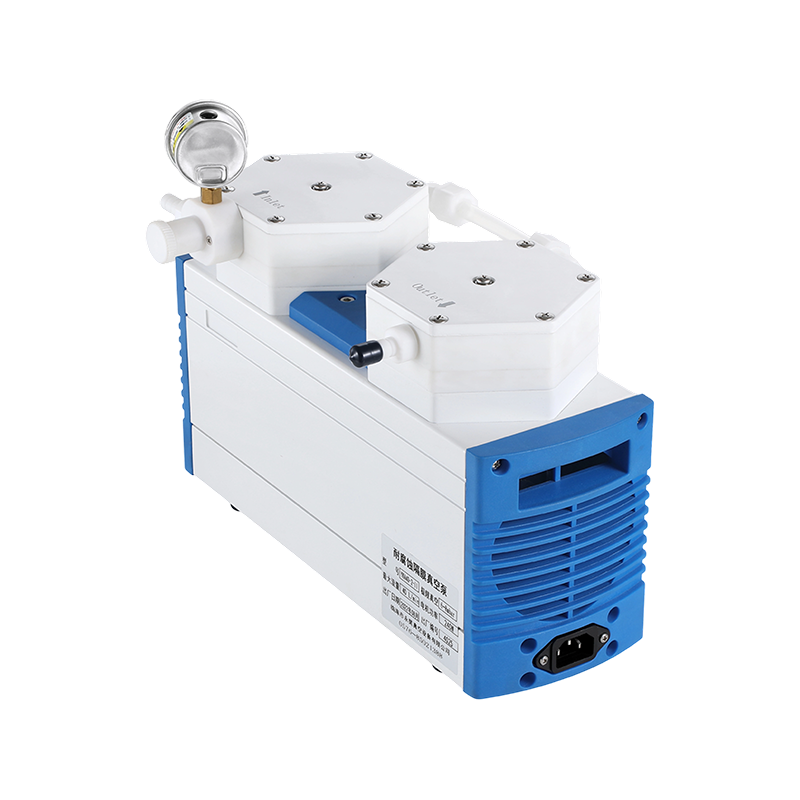

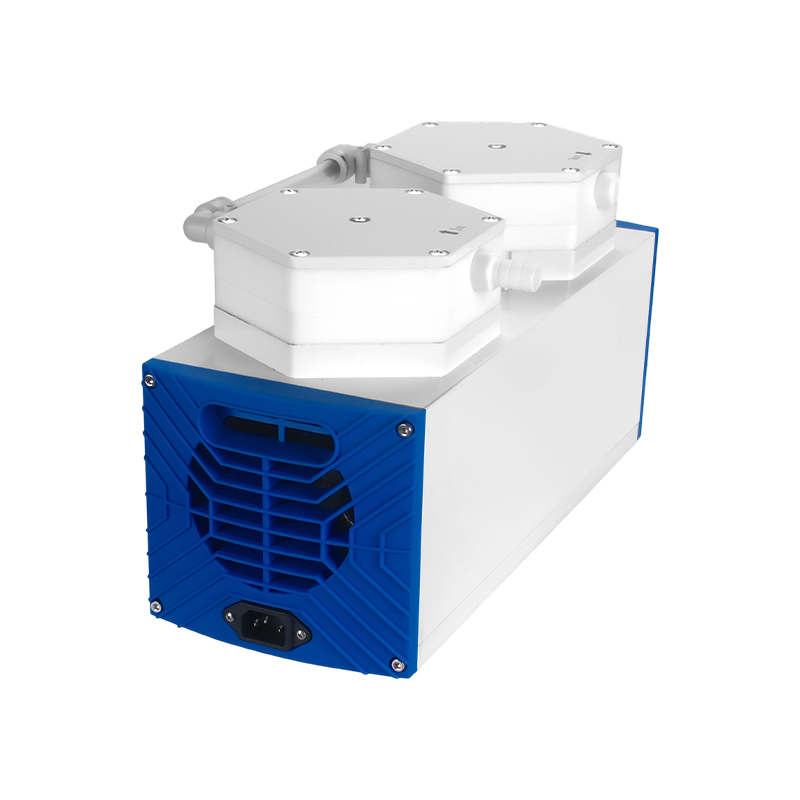

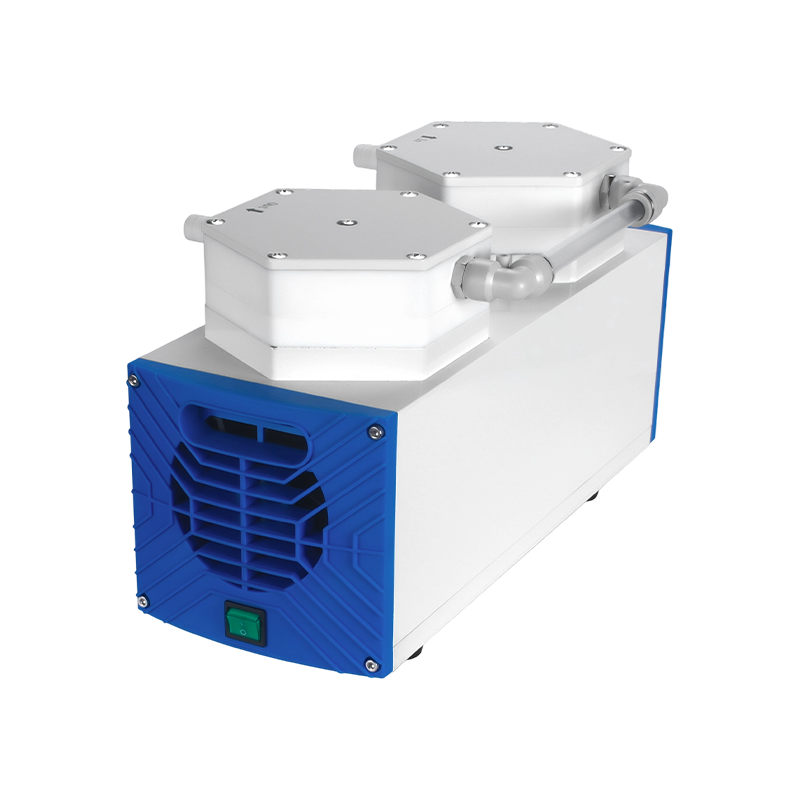

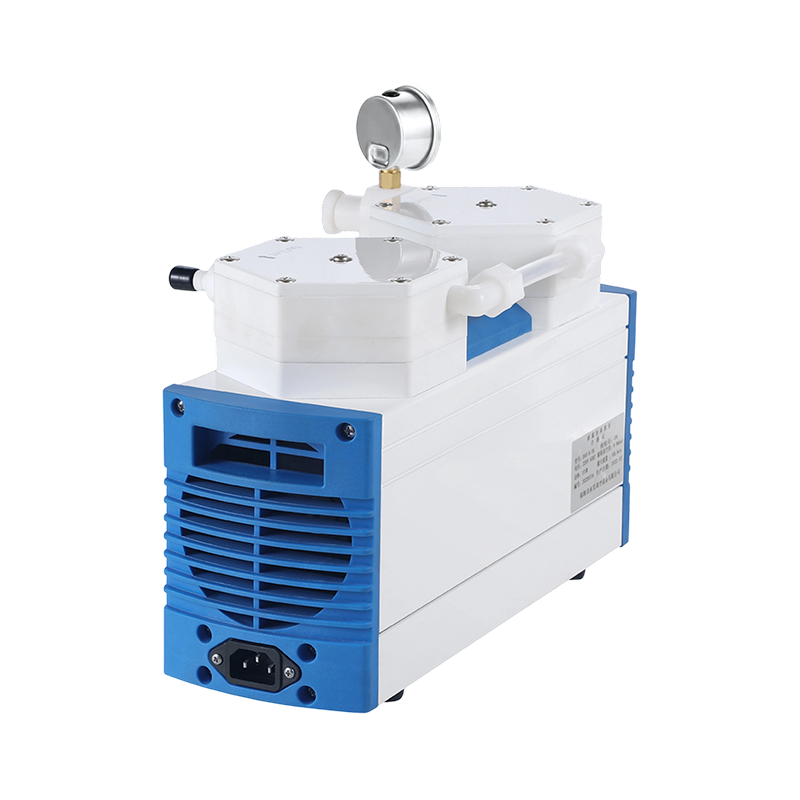

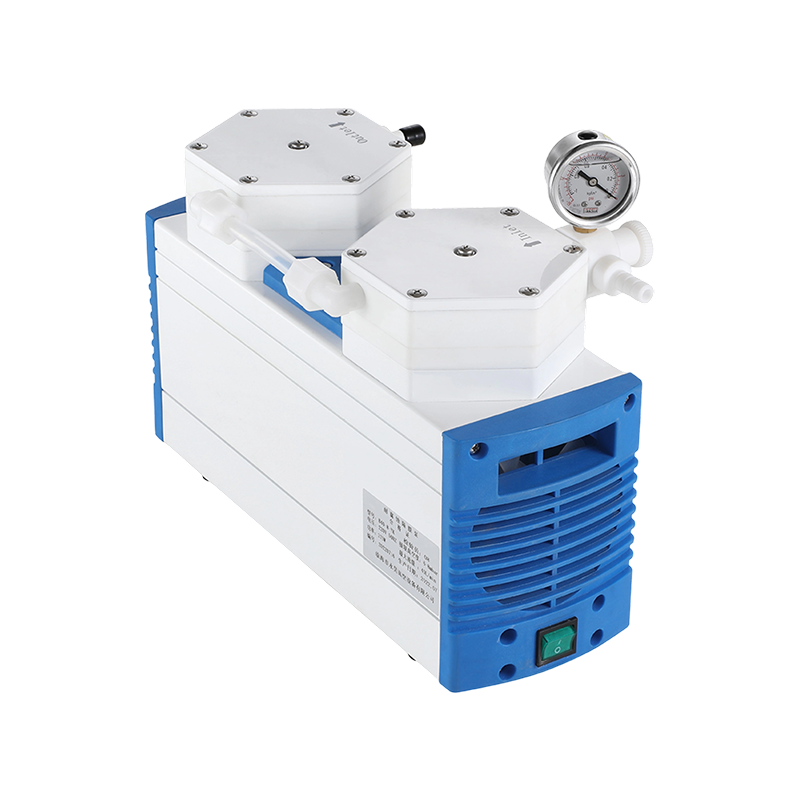

YKA Series Corrosion-Resistant Diaphragm Pump

YKA20-2-II YKA40-2-II YKA60-2-II YKA120-2-1I

Corrosion resistance, no leakage, real-time monitoring, stable operation, easy operation, and wide application.

PREV: No previous article Next: LH Series Oil-Free Diaphragm Vacuum Pump

Features & Application
Technical Parameters
Dimensions

Product Overview
YKA series corrosion-resistant diaphragm pumps are widely used in industrial fields that need to handle corrosive liquids due to their high efficiency and reliable performance. The pump is made of corrosion-resistant materials and can maintain stable operation in extreme environments. The design of the diaphragm pump ensures that the pump is leak-free during the delivery process and ensures the safety of operation.

Product Features
PTFE pump head material and PTFE-coated diaphragm are suitable for highly corrosive gases and steam

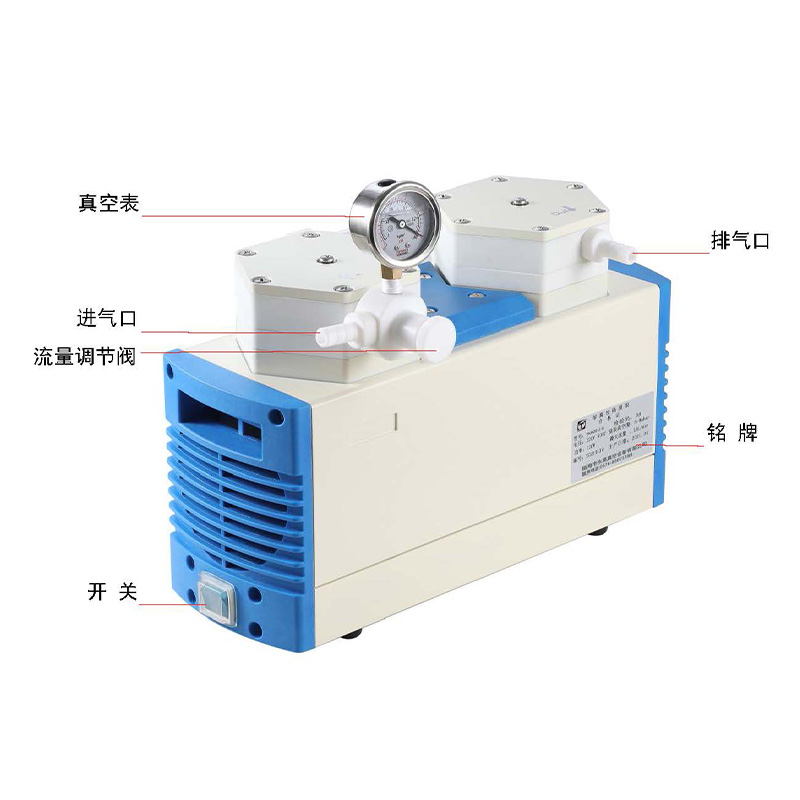

Equipped with a vacuum gauge to adjust the vacuum pressure
Pressure relief function, self-cleaning function
Good air tightness
Green and environmentally friendly

Product Application
Rotary evaporation
Vacuum drying
Centrifugal concentrator
Vacuum oven
Gel drying
Alternative water circulation pump

Message Feedback

About Us

Taizhou Yonghao Vacuum Equipment Co., Ltd.

Yonghao Vacuum was established in 2012 and is headquartered in Linhai City, Zhejiang Province. We are a high-tech enterprise specializing in the research and development, production, and service of YKA Series Corrosion-Resistant Diaphragm Pump. The company has gathered an experienced team of vacuum technology experts equipped with advanced manufacturing equipment, dedicated to providing customers with comprehensive vacuum solutions. With outstanding technical strength and innovation capability, Yonghao Vacuum has become a leading YKA Series Corrosion-Resistant Diaphragm Pump manufacturer in the industry.

News

Explosion-Proof Rotary Vane Vacuum Pump Fits Chemical Processes
10 Jul, 2026
Explosion-proof rotary vane vacuum pump models serve various sectors where safe vacuum generation matters. These pumps use a rotating mechanism to cre...
READ MORE
What Makes an Oil-Free Silent Diaphragm Vacuum Pump Suitable for Precision Tasks?
03 Jul, 2026
Diaphragm Technology Creates Stable Vacuum Performance The working principle of an Oil-Free Silent Diaphragm Vacuum Pump is based on the repeated move...
READ MORE
How Does A Corrosion-Resistant Oil-Free Silent Diaphragm Vacuum Pump Protect Sensitive Experiments?
26 Jun, 2026
If you have ever worked in a laboratory or a clean manufacturing environment, you know that vacuum pumps can be loud, messy with oil, and vulnerable t...
READ MORE

Haven’t Found The Products You Want?

Enter your email...

E-mail: [email protected]

Phone: +86-576-85021388
+86-576-85138880

+86-576-85021389

Address

1B, Phase 1, Liandong U Valley Linhai Intelligent Industrial Park, Jiangnan Street, Linhai City, Zhejiang, China.

Xiaaoyu, Jiangnan Street, Linhai City, Zhejiang, China.

Mobile

Parameters	YKA20-2-II	YKA40-2-II	YKA60-2-II	YKA120-2-II
Pumping Speed (L/min)	20	40	60	120
Ultimate Vacuum (mbar)	3 - 8 (No-load)	3 - 8 (No-load)	3 - 8 (No-load)	3 - 8 (No-load)
Power Supply Voltage (V/50Hz)	220	220	220	220
Input Power (W)	120	240	400	800
Pump Head Type	Two-stage Pump	Two-stage Pump	Two-stage Pump	Two-stage Pump
Interface Size (mm)	10	10	10	10
Noise (dBA)	< 58	< 58	< 58	< 58
Rated Speed (r/min)	1450	1450	1450	1450
Overall Dimensions (mm)	165×315×210	170×320×210	210×350×210	370×470×880
Weight (KG)	9.6	11	22	60
