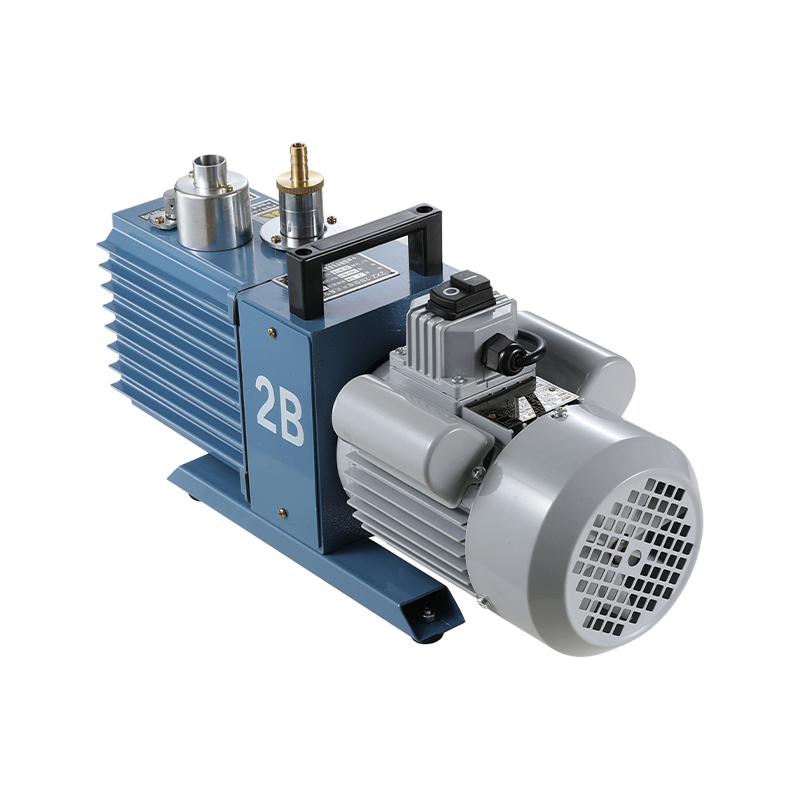

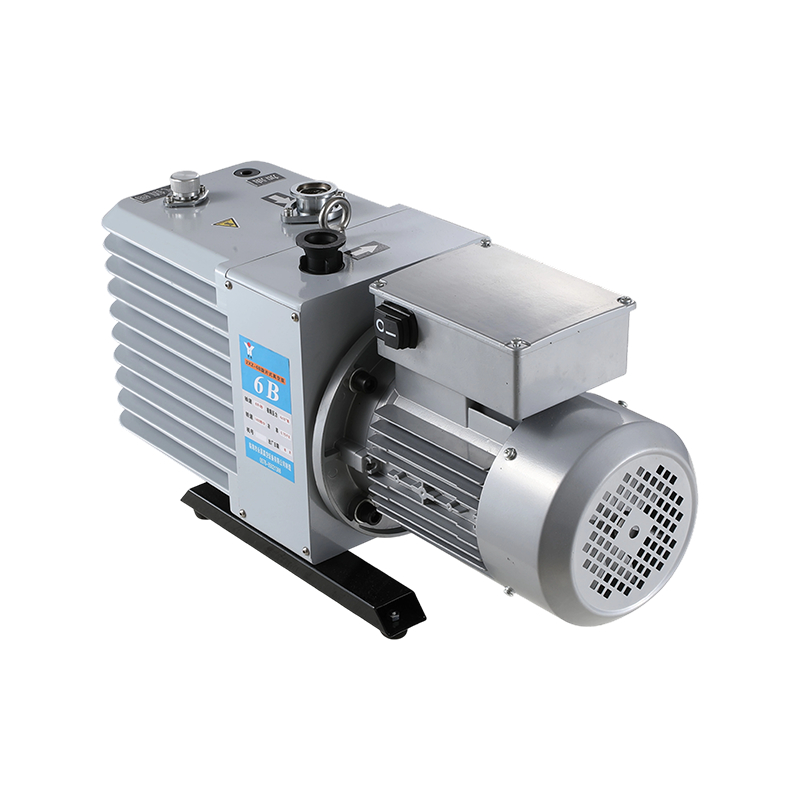

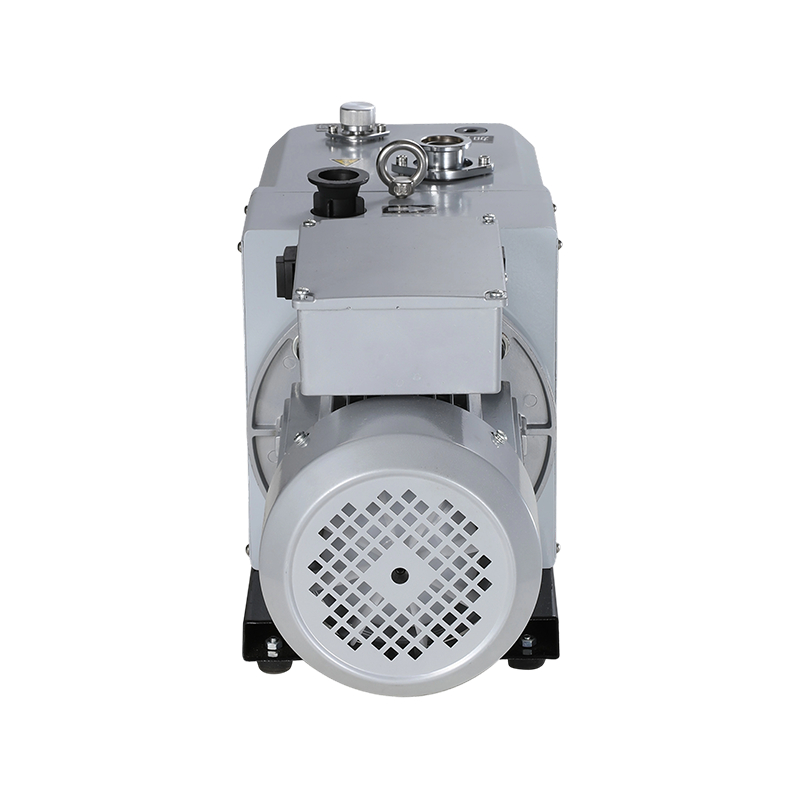

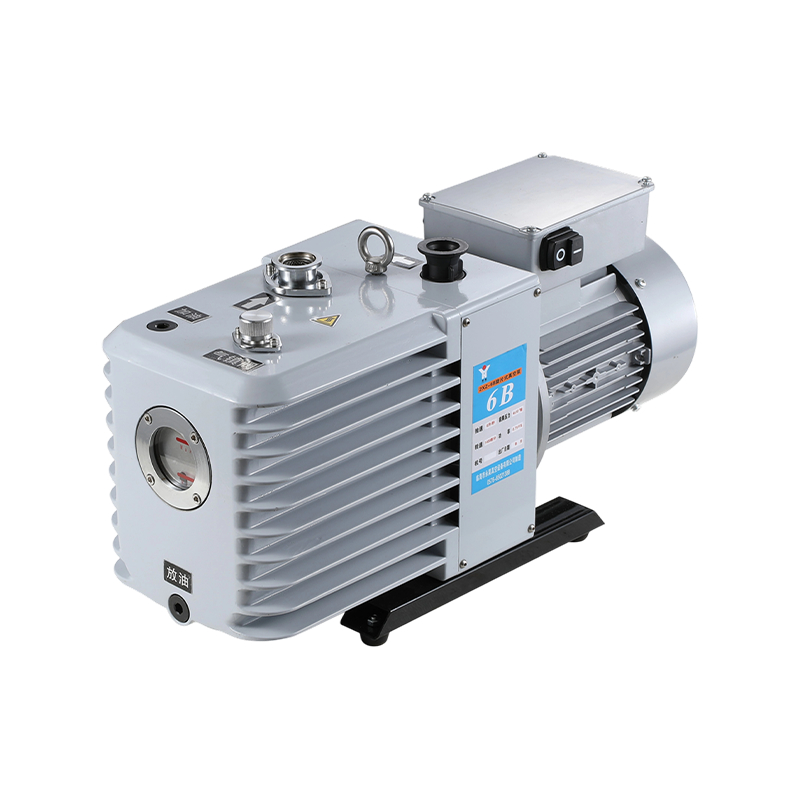

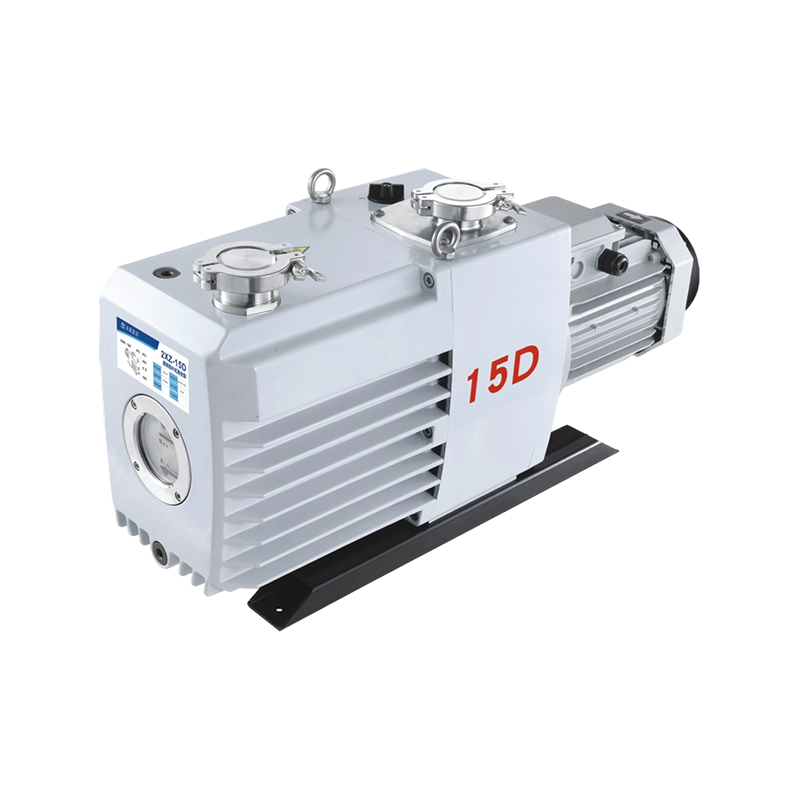

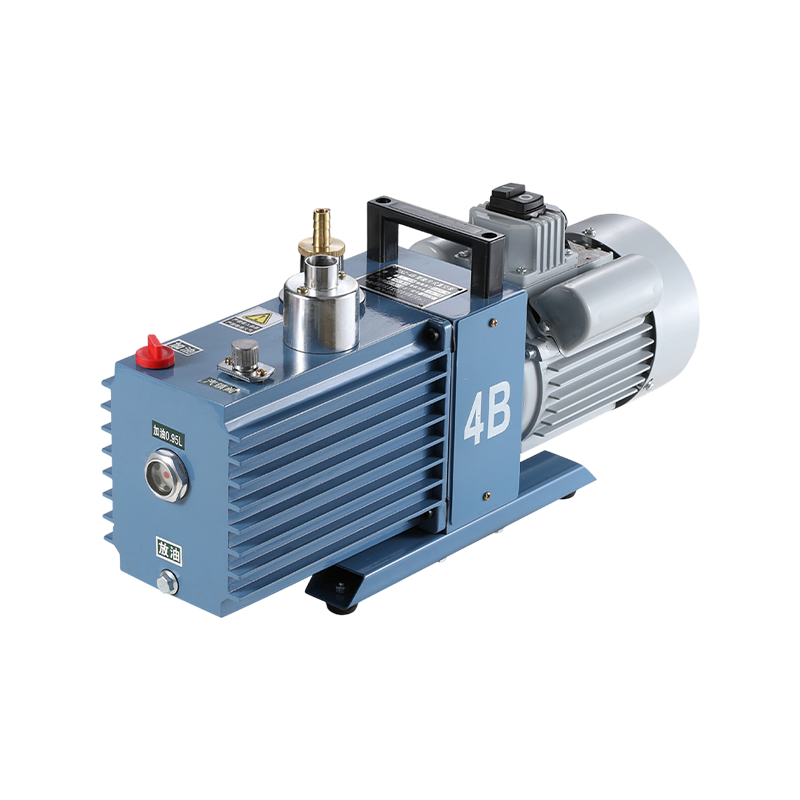

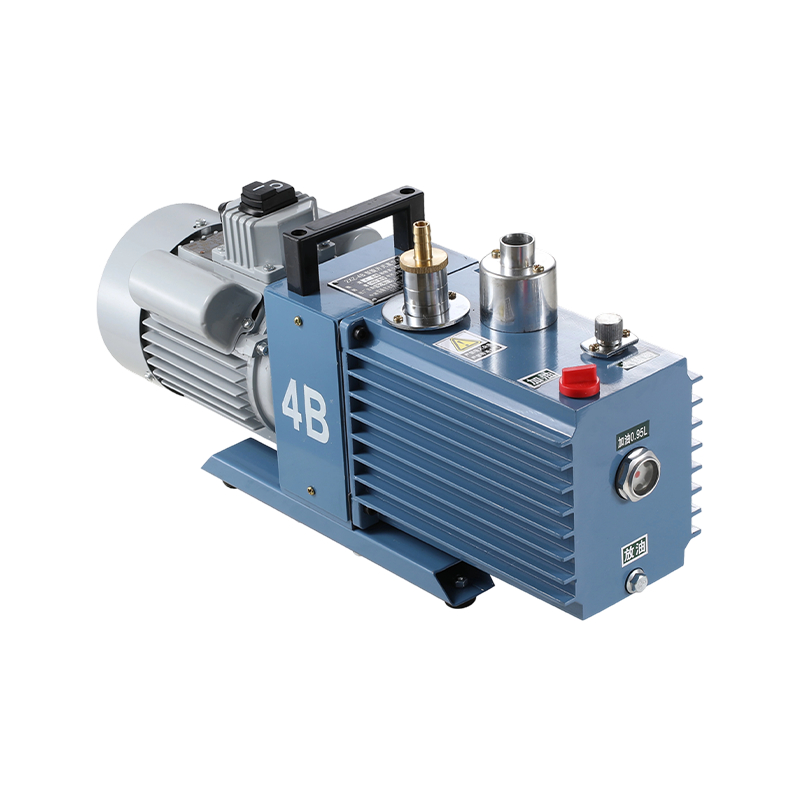

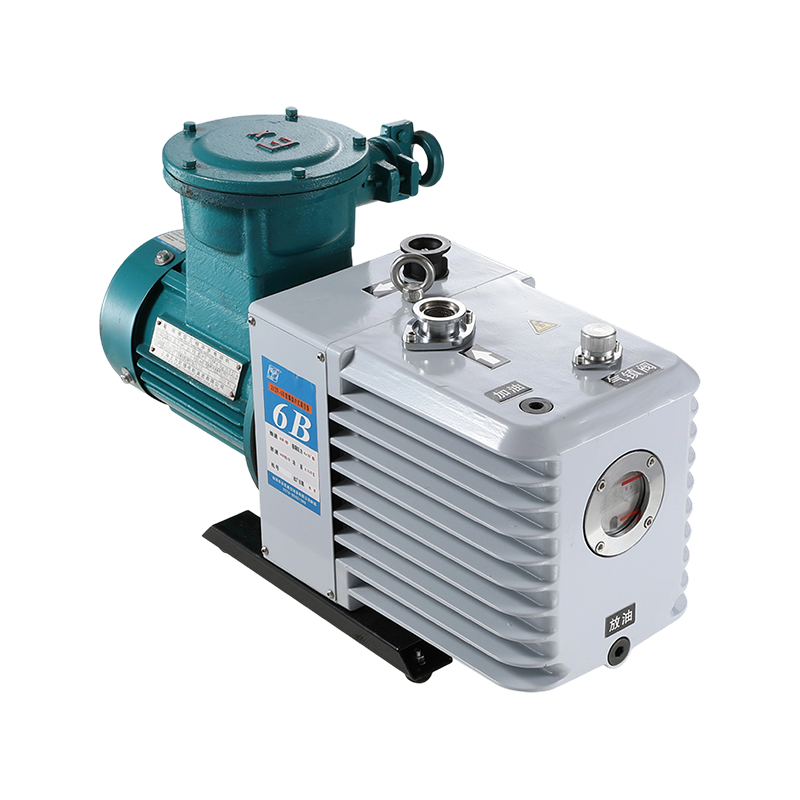

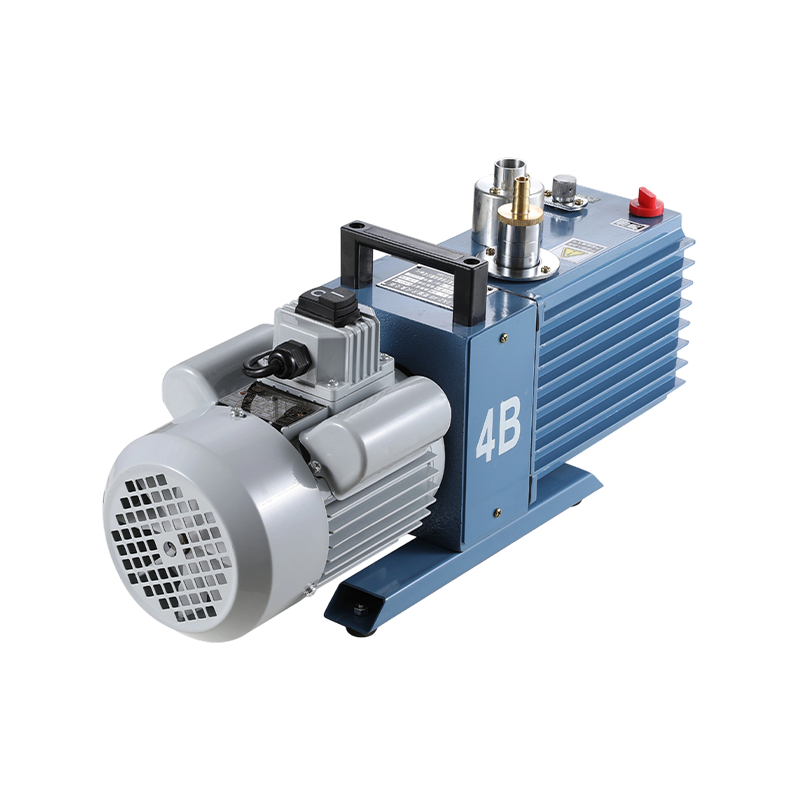

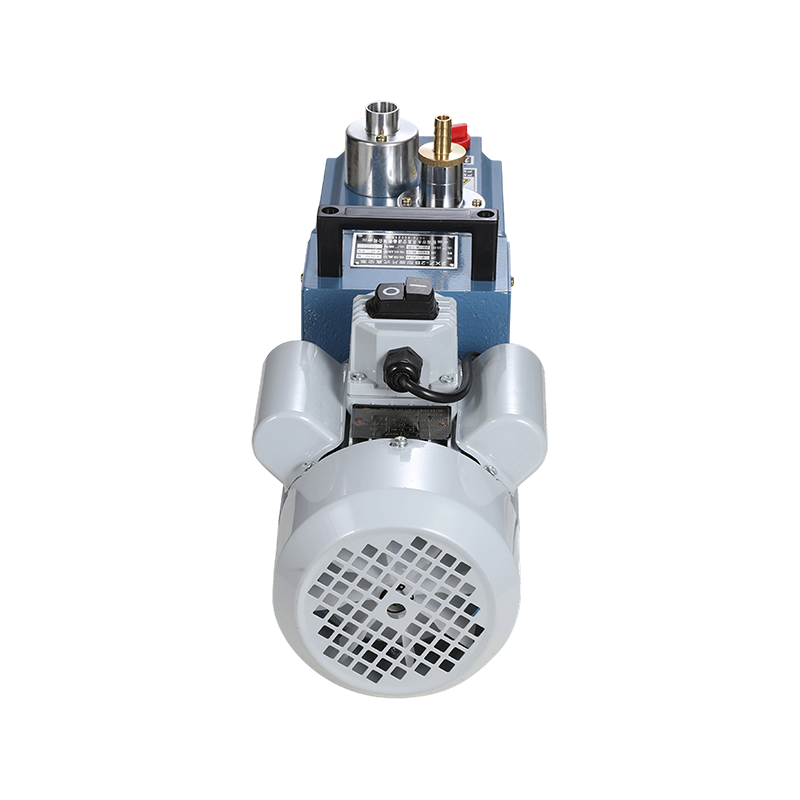

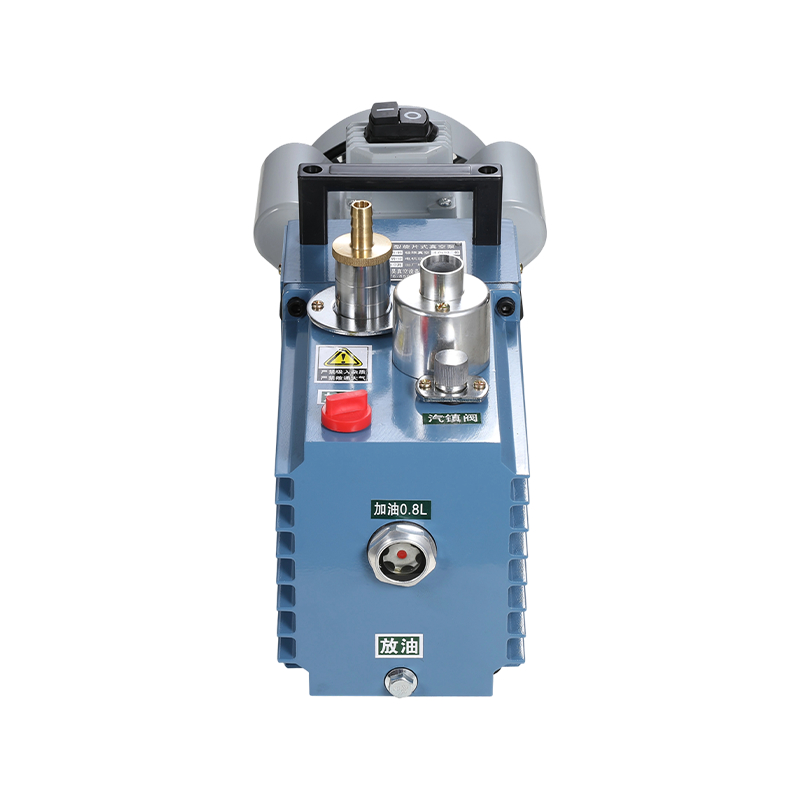

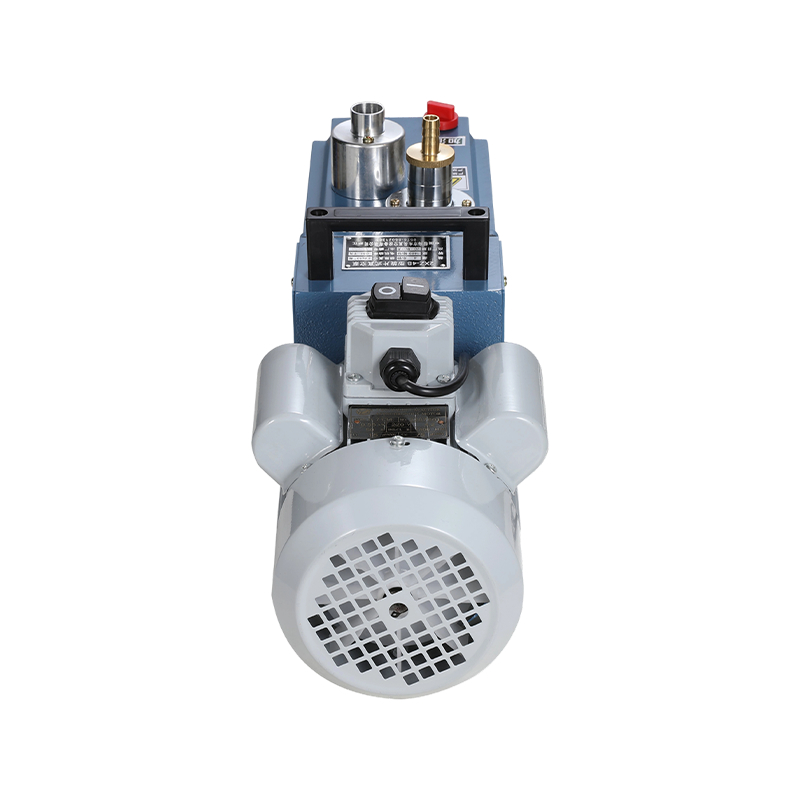

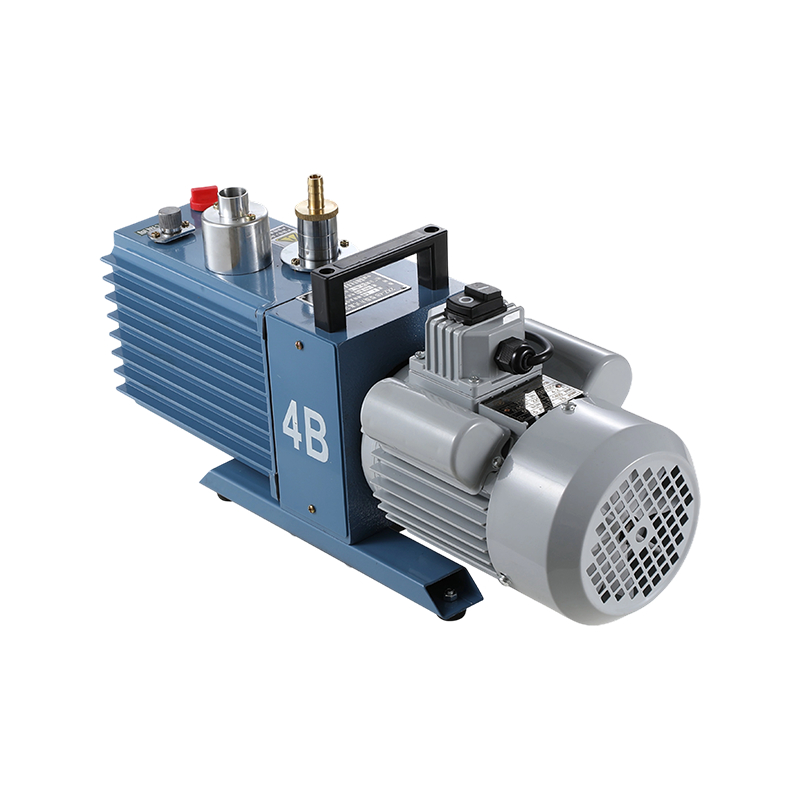

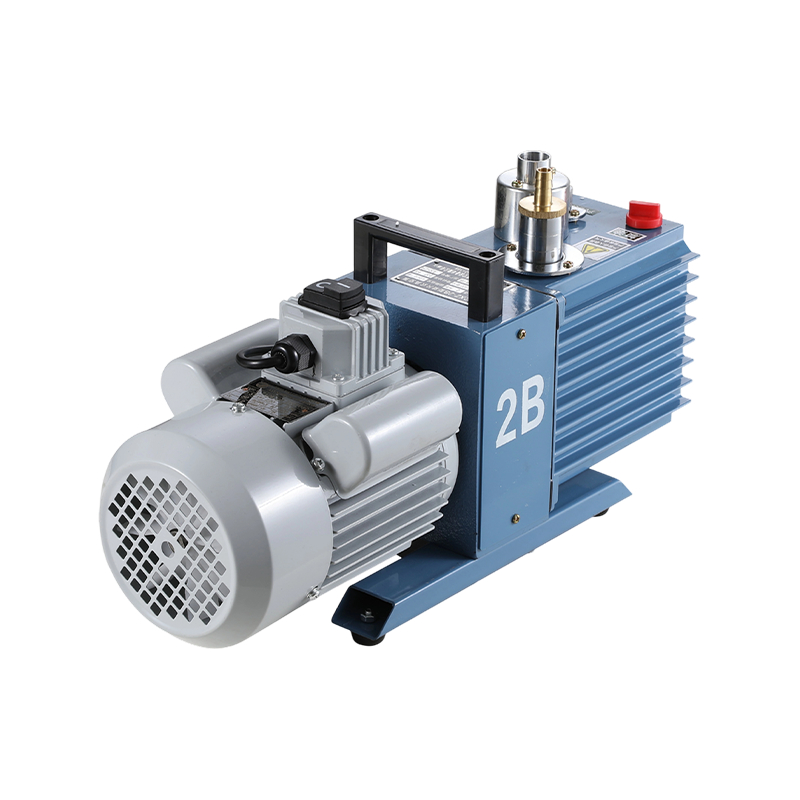

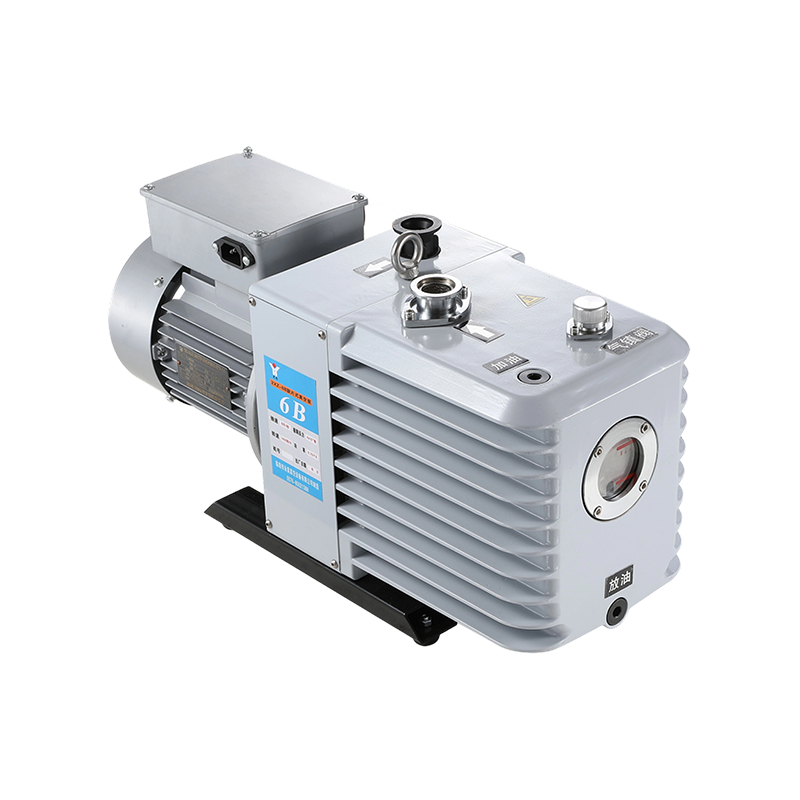

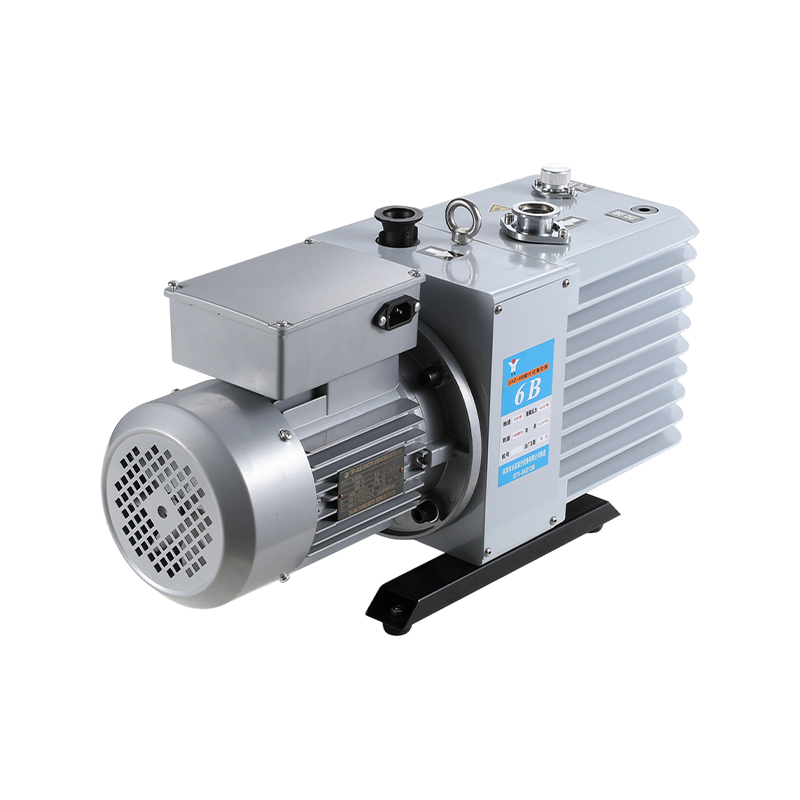

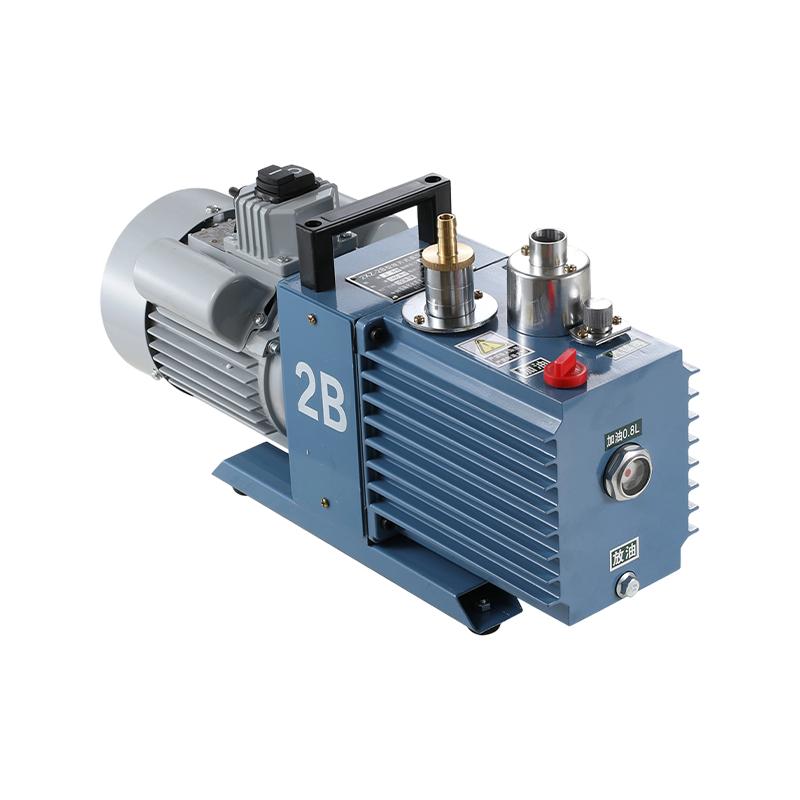

2XZ-B/D Series Two-Stage Rotary Vane Industrial Laboratory Foreline Vacuum Pump

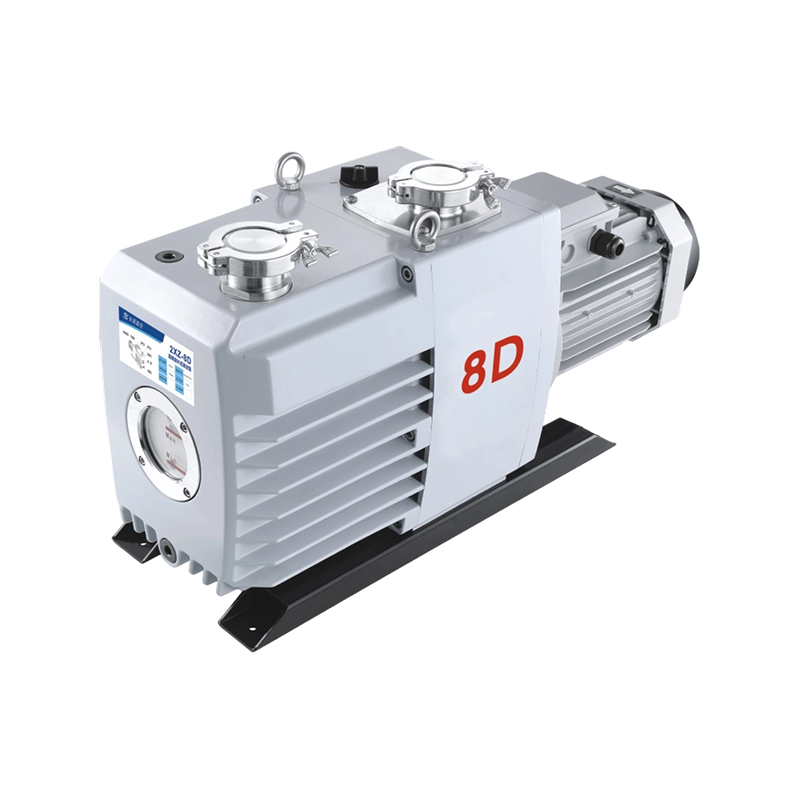

2XZ-2B 2XZ-4B 2XZ-6B 2XZ-8D 2XZ-15D 2XZ-25D

This product is an optimization of the original 2XZ series, with improved anti-oil performance and a greater pumping speed option.

The rotary vane oil-sealed mechanical pump (referred to as the rotary vane pump) is a variable-volume gas transmission vacuum pump and one of the basic vacuum acquisition equipment in vacuum technology. Its working pressure range is 101325--4.0*10^-1Pa. It can be used alone or as a fore-stage pump for other high vacuum pumps to remove dry gas from sealed containers. If it is equipped with a gas ballast device, it can also remove a certain amount of condensable gas. It is widely used in metallurgy, machinery, electronics, chemicals, the light industry, petroleum, and medicine. However, the rotary vane pump is not suitable for removing gases with high oxygen content, explosive, corrosive to metals, chemical reactions with pump oil, or particulate dust.

Inquiry

PREV: DVP Series Two-Stage Rotary Vane High-Speed Laboratory Silent Dry Vacuum Pump Next: 2XZ Series Two-Stage Rotary Vane Laboratory Small Freeze Dryer Vacuum Pump

Features & Application

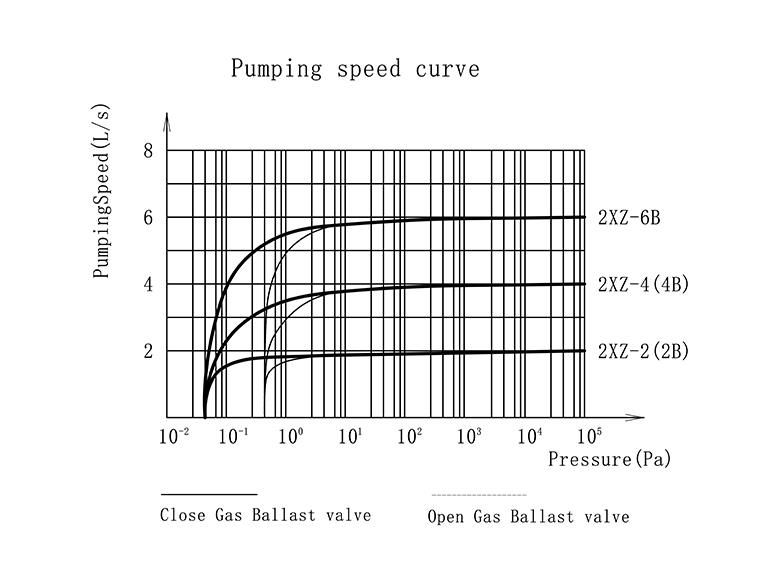

Technical Parameters

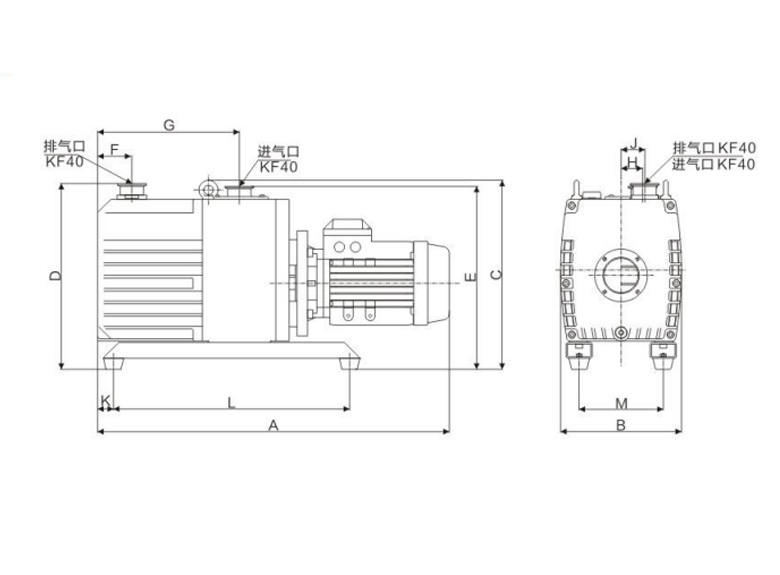

Dimensions

Product Features

Economical and durable, with high cost performance
The forced oil pump structure greatly reduces the probability of oil backflow
More pumping speed options
High flow rate, reaching a stable ultimate vacuum in a short time
Strong water vapor resistance
Can work stably and for a long time, with a low maintenance rate
Less oil mist, which is conducive to optimizing the laboratory environment

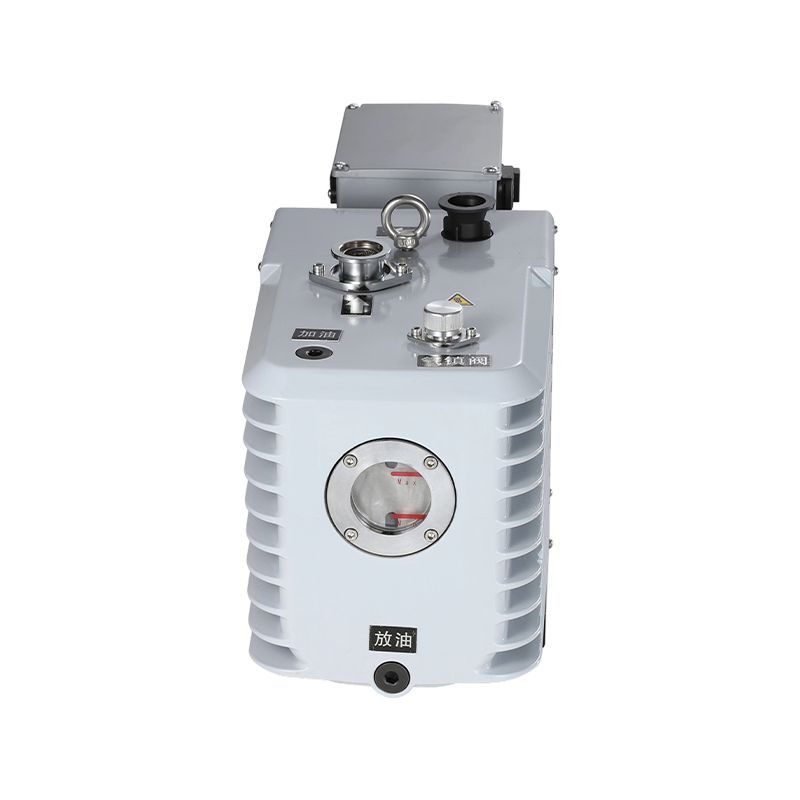

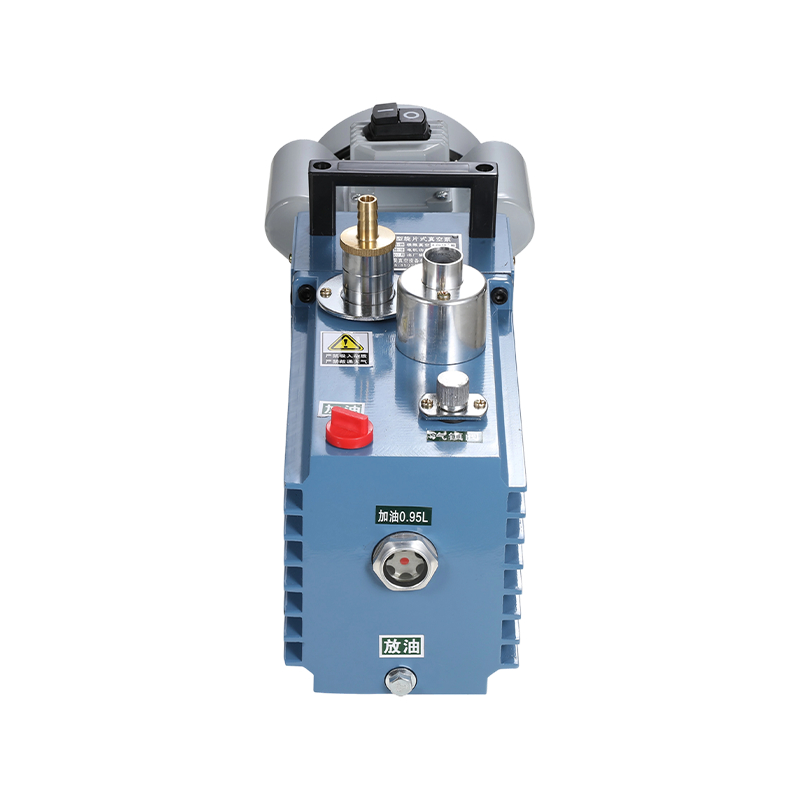

Round oil level display window, reasonable design, and more convenient observation
Equipped with a gas ballast, it can extract a certain amount of condensable gas

Product Application

Product Use:
Plasma cleaning machine, freeze dryer, rotary evaporator, vacuum drying oven, reactor
Centrifugal concentrator, glove box, tubular furnace, double-row pipe
Filtration, coating, and sputtering equipment
Various high-vacuum fore-stage pumps

Industry Application Areas:
Coating, freeze drying, RAC refrigeration, systems and machinery, leak detection systems, energy technology, industrial furnaces, industrial gases, automobiles, aviation, sterilization, plasma treatment.

Message Feedback

About Us

Taizhou Yonghao Vacuum Equipment Co., Ltd.

Yonghao Vacuum was established in 2012 and is headquartered in Linhai City, Zhejiang Province. We are a high-tech enterprise specializing in the research and development, production, and service of 2XZ-B/D Series Two-Stage Rotary Vane Industrial Laboratory Foreline Vacuum Pump. The company has gathered an experienced team of vacuum technology experts equipped with advanced manufacturing equipment, dedicated to providing customers with comprehensive vacuum solutions. With outstanding technical strength and innovation capability, Yonghao Vacuum has become a leading 2XZ-B/D Series Two-Stage Rotary Vane Industrial Laboratory Foreline Vacuum Pump manufacturer in the industry.

News

Laboratory-Grade Silent Vacuum Pumps Suit Sensitive Environments
17 Jul, 2026
Anyone who has spent real time in a lab knows how much a noisy piece of equipment can wear on a room. A vacuum pump that hums along quietly in the bac...
READ MORE
Explosion-Proof Rotary Vane Vacuum Pump Fits Chemical Processes
10 Jul, 2026
Explosion-proof rotary vane vacuum pump models serve various sectors where safe vacuum generation matters. These pumps use a rotating mechanism to cre...
READ MORE
What Makes an Oil-Free Silent Diaphragm Vacuum Pump Suitable for Precision Tasks?
03 Jul, 2026
Diaphragm Technology Creates Stable Vacuum Performance The working principle of an Oil-Free Silent Diaphragm Vacuum Pump is based on the repeated move...
READ MORE

Haven’t Found The Products You Want?

Enter your email...

E-mail: [email protected]

Phone: +86-576-85021388
+86-576-85138880

+86-576-85021389

Address

1B, Phase 1, Liandong U Valley Linhai Intelligent Industrial Park, Jiangnan Street, Linhai City, Zhejiang, China.

Xiaaoyu, Jiangnan Street, Linhai City, Zhejiang, China.

Mobile

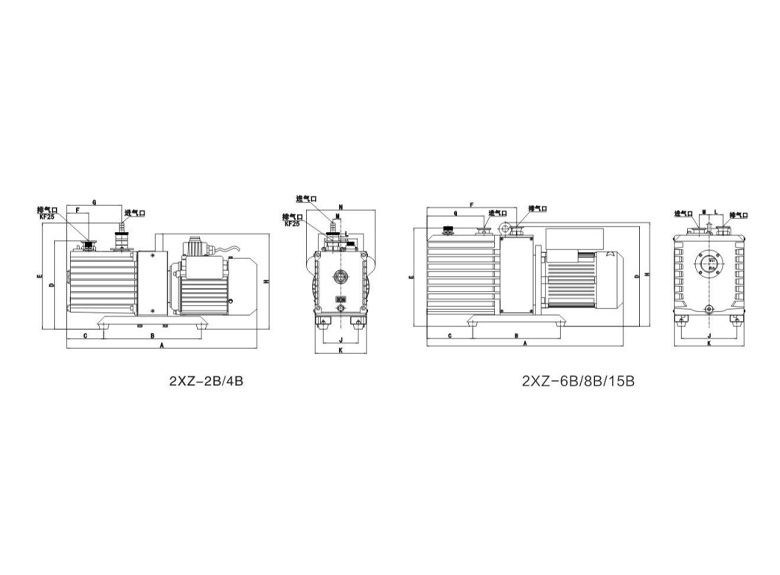

Model	A	B	C	D	E	F	G	H	J	K	L	M	N
2XZ-2B	486	250	95	226	272	56	140	244	90	132	20	20	176
2XZ-4B	526	250	135	226	272	56	180	244	90	132	20	20	176
2XZ-6B	565	252	132	287	282	258	164	298	160	200	40	29
2XZ-8B	655	400	112	333	341	312	105	352	172	222	47	45
2XZ-15B	720	400	177	333	341	377	105	352	172	222	47	45
2XZ-8D	670	230	360	354	349	65	270	41	45	30	450	160
2XZ-15D	715	230	360	354	349	65	315	41	45	30	495	160
